Tutorial: Visualize a state machine in Stately

Turn an @typeonce/effect-machine machine into an interactive statechart in stately.ai/viz — without adopting XState as your runtime. This walkthrough uses the send-money lifecycle sample that ships with the docs.

For the full reading contract (state trees, targets, MachineJSON, coverage gate), see State Machines.

What you will do

1. Start from the sample — a machine that mirrors the transfer workflow
2. Export an XState createMachine config with effect-analyze
3. Paste it into the Stately visualizer
4. Read the resulting diagram — Advance path, Fail sinks, invoke, finals

Step 1 — Start from the sample

The machine lives next to the Effect pipeline it models:

apps/docs/samples/observability-transfer/transfer-lifecycle.ts

Dense Advance / Fail events at every active stage, branch conditions the analyzer reads as guards, an invoked child, and two explicit finals:

export const TransferStates = Machine.defineStates({
  Validating,
  FetchingRate,
  Converting,
  Executing,
  Confirming,
  Done: { schema: Done, type: 'final' },
  Failed: { schema: Failed, type: 'final' },
})

export const TransferLifecycle = Machine.make({
  states: TransferStates.states,
  events: [Advance, Fail, Executed],
  initial: () => TransferStates.initial.Validating(new Validating()),
}).handle({
  // …
  Converting: {
    on: {
      Advance: ({ state, target }) =>
        state.sufficientFunds
          ? target.full.Executing(new Executing())
          : target.full.Failed(new Failed()),
      Fail: ({ target }) => target.full.Failed(new Failed()),
    },
  },
  Executing: {
    invoke: () => ExecuteTransfer,
    on: {
      Executed: ({ target }) =>
        target.full.Confirming(new Confirming({ retryable: true })),
      Fail: ({ target }) => target.full.Failed(new Failed()),
    },
  },
  // …
})

The Effect program in send-money-workflow.ts still does the real work. This machine is the model the analyzer diagrams and checks.

Step 2 — Export the XState config

From the repo root (after installing / building the CLI):

npx effect-analyze \
  ./apps/docs/samples/observability-transfer/transfer-lifecycle.ts \
  --format xstate-config

You get a paste-ready module. The same config is also embedded in the local visualizer page:

npx effect-analyze \
  ./apps/docs/samples/observability-transfer/transfer-lifecycle.ts \
  --format statechart-html --open

Step 3 — Paste into Stately

1. Open stately.ai/viz
2. Replace the editor contents with the generated config (below)
3. Click Visualize

import { createMachine } from 'xstate';

export const TransferLifecycleMachine = createMachine({
  id: 'TransferLifecycle',
  initial: 'Validating',
  states: {
    Validating: { on: { Advance: 'FetchingRate', Fail: 'Failed' } },
    FetchingRate: { on: { Advance: 'Converting', Fail: 'Failed' } },
    Converting: { on: { Advance: [{ target: 'Executing', guard: 'state.sufficientFunds' }, { target: 'Failed', guard: '!(state.sufficientFunds)' }], Fail: 'Failed' } },
    Executing: { invoke: { src: 'executeTransfer', id: 'executeTransfer' }, on: { Executed: 'Confirming', Fail: 'Failed' } },
    Confirming: { on: { Advance: 'Done', Fail: [{ target: 'Confirming', guard: 'state.retryable' }, { target: 'Done', guard: '!(state.retryable)' }] } },
    Done: { type: 'final' },
    Failed: { type: 'final' }
  }
});

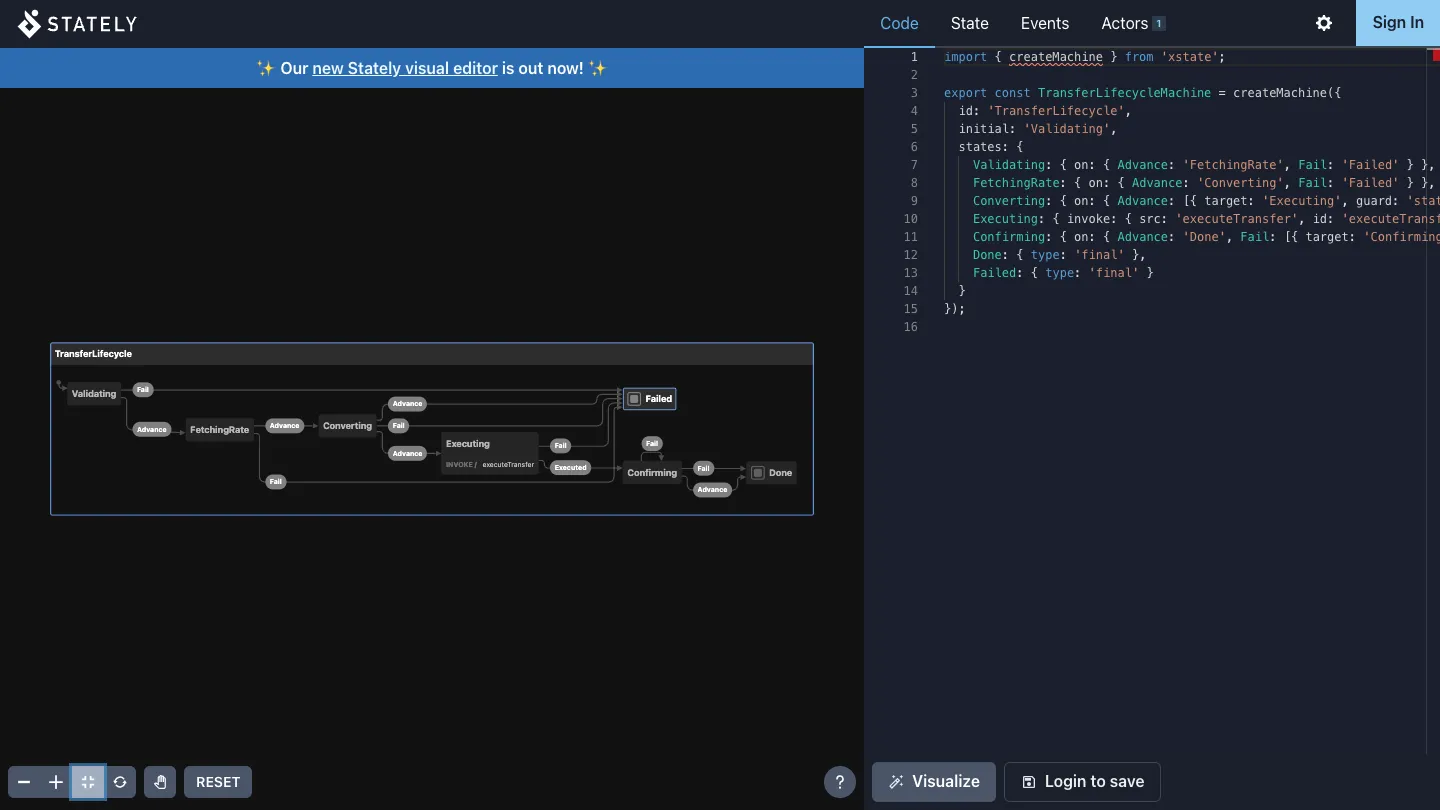

Step 4 — What you should see

In the diagram:

• Happy path — Validating → FetchingRate → Converting → Executing → Confirming → Done
• Fail sinks — Fail from active stages into the Failed final
• Invoke — Executing shows INVOKE / executeTransfer, with the child’s Executed event carrying the machine forward
• Guarded choices — Converting has two Advance edges and Confirming two Fail edges, one per branch (the legacy visualizer draws the alternatives but does not print the guard text; it is in the config)
• Finals — Done and Failed render as final states

The machine is live in the visualizer: the Events panel only enables the events the current state handles, so you can step through the workflow and confirm the targets resolve.

Labels, not runtime

Guards such as state.sufficientFunds, and the executeTransfer invoke id, are labels. Stately draws them; @typeonce/effect-machine runs the real machine. The analyzer never executes anything.

Keep the machine honest in CI

After you change the machine, gate structural completeness on the sample:

npx effect-analyze \
  ./apps/docs/samples/observability-transfer/transfer-lifecycle.ts \
  --format statechart-coverage --min-coverage 60

Next: the full reading contract, hierarchy, and coverage semantics in State Machines.
