Service Maps

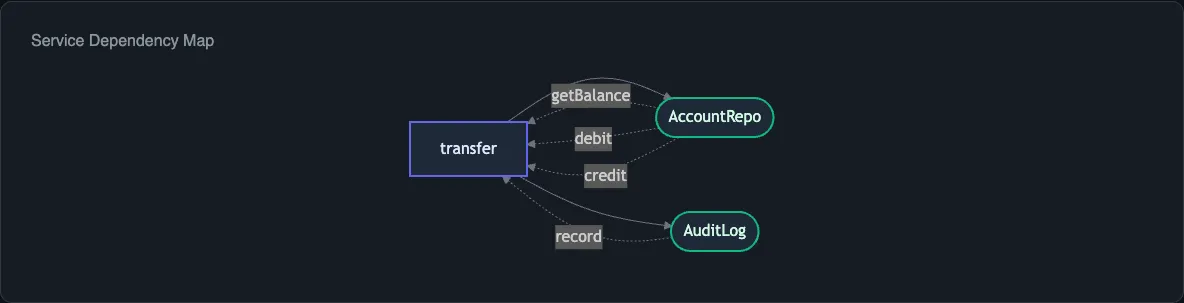

The service map diagram shows which Context.Tag services your Effect program depends on and how steps in the program consume those services. For project-wide analysis, the --service-map flag produces a deduplicated registry of all services across your codebase.

Example fixture: packages/effect-analyzer/src/__fixtures__/docs/transfer-workflow.ts

flowchart LR
  prog["transferWorkflow"]

  svc_AccountService{{"AccountService"}}
  prog -->|requires| svc_AccountService
  svc_AuditLog{{"AuditLog"}}
  prog -->|requires| svc_AuditLog

Generating a Service Map

npx effect-analyze ./src/transfer.ts --format mermaid-services

This produces a Mermaid diagram that groups steps by the services they require. Each service appears as a node, with edges connecting it to the steps that consume it.

For this program, the analyzer reports AccountService and AuditLog as required services.

When Auto Mode Selects Services

Auto mode includes a service map when your program has two or more distinct Context.Tag dependencies. Programs with a single service or no services skip this view in favor of more relevant diagrams.

Project-Wide Service Map

When analyzing a directory, use --service-map to discover all services across the project and see which files consume them:

npx effect-analyze ./src --service-map

This deduplicates services that appear in multiple files and produces a consolidated registry showing:

• Every Context.Tag defined in the project
• Which files provide implementations (via Layer)
• Which files consume the service (via yield* or Effect.provideService)

Note

The project-wide service map is especially useful for understanding the dependency injection topology of a large Effect application. It answers questions like “who provides DatabaseService?” and “who depends on it?”

Programmatic Usage

Generate service maps through the library API:

import { analyze, renderServiceGraphMermaid } from "effect-analyzer"
import { Effect } from "effect"

const ir = await Effect.runPromise(analyze("./src/transfer.ts").single())
const diagram = renderServiceGraphMermaid(ir)

console.log(diagram)

For project-wide analysis:

import { buildProjectServiceMap } from "effect-analyzer"

const serviceMap = buildProjectServiceMap(allIRs)
// serviceMap.services - Map of service name to ServiceArtifact

The ServiceArtifact type contains:

• tagName - the Context.Tag identifier
• providers - files and layers that provide an implementation
• consumers - files and steps that consume the service

Colocated Output

When running in directory mode with --colocate, each generated .effect-analysis.md file includes the service dependencies for that file’s programs:

npx effect-analyze ./src --colocate

This writes a *.effect-analysis.md file next to each source file, containing diagrams, complexity metrics, and the service dependency list.

Related

• Diagram Overview - how auto-detection selects diagrams
• Library API - buildProjectServiceMap, renderServiceGraphMermaid
• Coverage Audit - project-wide analysis including service usage
